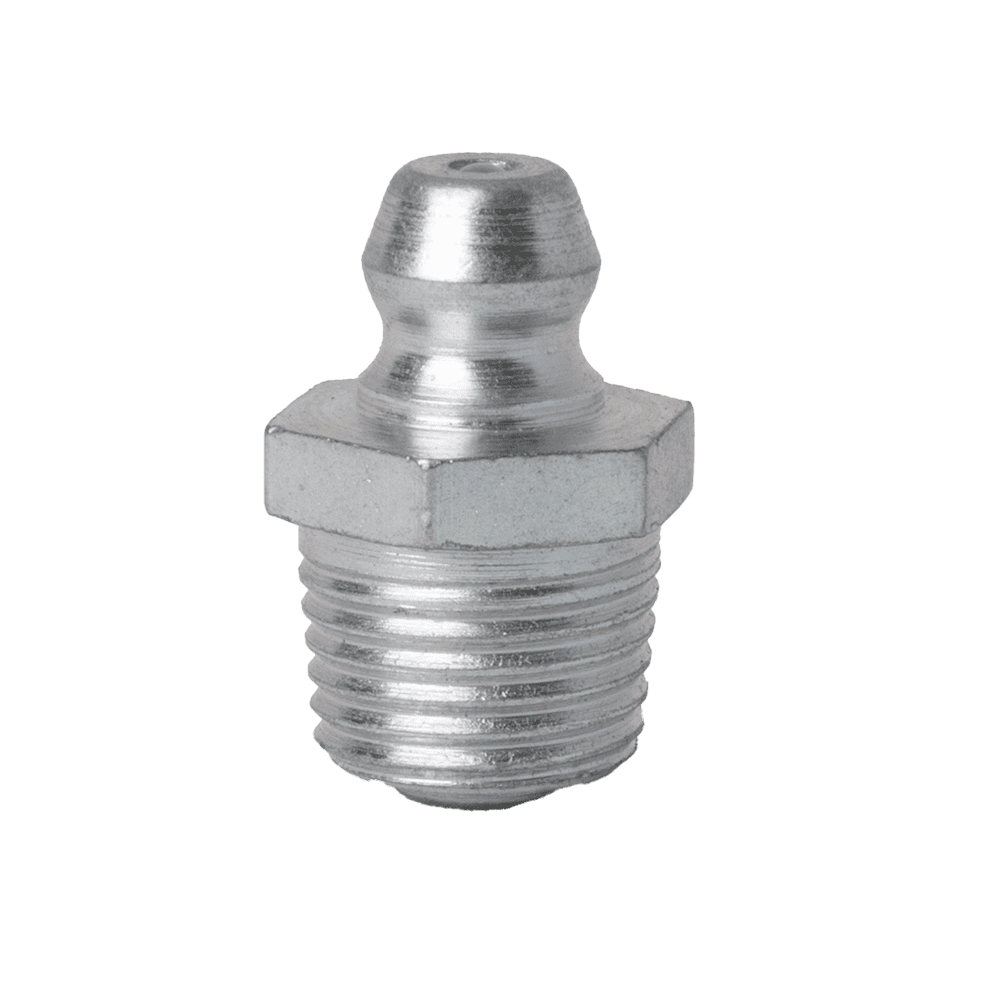

1/8″ x 27 Self Forming Straight Grease Fitting – 10 pcs
£4.52
225578
In stock
Looking to order large quantities of this product? Contact us today for a quote.
1/8″ x 27 Thread Forming Thread. Hydraulic Straight Grease Fitting.
Zinc Trivalent Passivate Finish. RoHS and REACH Compliant.
Self-forming threads can be screwed or driven into an untapped hole. The recommended size of the hole for a 1/8″ x 27 thread is 9.47-9.65mm (Ref SAE J534) but can be dependent on the material.
Avoid chamfering as a sharp edge to the hole helps the thread bite.
Also available with Zinc Yellow Chromate. Code 205578. Limited Availability.
| Angle | Straight |
|---|---|
| Ball_check | Yes |
| Dims_a_i | 0.7 |
| Dims_a_m | 17.8 |
| Dims_b_i | 0.32 |
| Dims_b_m | 8.1 |
| Dims_c_i | 1/2" across corners |
| Dims_c_m | 12.7 across corners |
| Hardened | Yes |
| Hole | ref. SAE J534 |
| International | Thread to SAE J534 |
| Manufacturer | Hydraulic Grease Nipple |
| Material | Mild Steel |
| Spanner_wrench_size | 7/16" Hexagon |
| Thread | 1/8 x 27 Special Taper |
| Thread_type | Self-forming |
| Zinc_plating | Zinc Trivalent Passivate |
